Laser Welding Machine
A Laser Welding Machine is a device that uses high-intensity laser beam to join two or more materials together. They are used in manufacturing and engineering industries. The laser beam provides a concentrated heat source, allowing accurate control over the welding process. Its ability is to weld metals with high preciosionh and minimal heat-affected zones.
Mould Laser Welding Machine
Universal Laser Welding Machine
Jewelry Laser Welding Machine

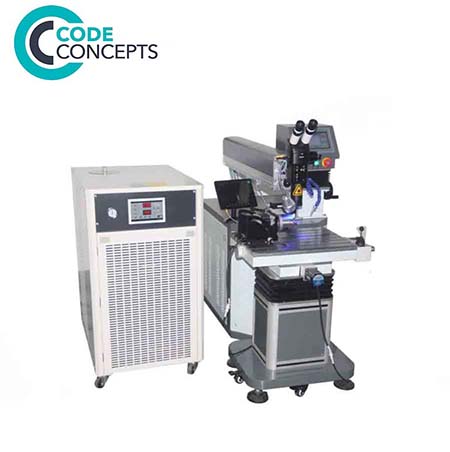

Mould Laser Welding Machine
Product Description
Model No.
XT-W100
XT-W150
XT-W200
Rated Power
100W
150W
200W
Single-pulse energy
40J
60J
80J
Power Supply
220V±10%,50Hz/60HZ
Laser Source
ND:YAG
Laser Wavelength
1064nm
Pulse Width
0.1-10ms
Pulse Frequency
≤50Hz
Beam Diameter
0.1-3.0mm
Welding wire diameter
0.1-0.4mm
0.1-0.5mm
0.1-0.6mm
Observing System
microscope
Chamber Illumination
LED lamps
Parameters Memorization
10 groups
Protection Alert
Yes
Language Display
English
Shield Gas Supply
One line quick connection(argon)
Cooling System
Water chiller
Welding Chamber Dimensions
300mm*450mm*150mm (L*W*H)
Machine Dimensions
920mm*560mm*1220mm (L*W*H)
Running Environment
Tem 5°C-30°C, Hum 5%-75%
Net Weight
150kg(welder) +75kg(chiller)
Advantages
1.Fully enclosed protective cover, Guaranteeing the separation of operator and machine, Dustproof Environmental
2.Exchangeable working table、10s for one-time table exchanging、effective saving of artificial feeding time
3.High thickness metal frame working bed, processed by hot quenching, more stable working bed structure
Characteristics
1.Stability and reliability of light path system and control system.
2. Imported original fiber lasers, high and stable function, lifespan is over 100000 hours.
3. Higher cutting quality and efficiency, cutting speed are up to 80m/min with the appearance and beautiful cutting edge.
4.German high-performance reducer, gear and rack; Japanese guide and ball screw.
Our Services
1.24-hour full after sales service.
2. All finished machines we delivered is 100% strictly tested by our QC department and engineering department.
3.OEM Service Customized and OEM orders are welcome due to our abundant experiences. All the OEM services are free.
Universal Laser Welding Machine
Product Description
Model No.
XT-W150
XT-W200
Rated Power
100W
150W
200W
Single-pulse energy
40J
60J
80J
Power Supply
220V±10%,50Hz/60HZ
Laser Source
ND:YAG
Laser Wavelength
1064nm
Pulse Width
0.1-10ms
Pulse Frequency
≤50Hz
Beam Diameter
0.1-3.0mm
Welding wire diameter
0.1-0.4mm
0.1-0.5mm
0.1-0.6mm
Observing System
microscope
Chamber Illumination
LED lamps
Parameters Memorization
10 groups
Protection Alert
Yes
Language Display
English
Shield Gas Supply
One line quick connection(argon)
Cooling System
Water chiller
Welding Chamber Dimensions
300mm*450mm*150mm (L*W*H)
Machine Dimensions
920mm*560mm*1220mm (L*W*H)
Running Environment
Tem 5°C-30°C, Hum 5%-75%
Net Weight
150kg(welder) +75kg(chiller)
Advantages
1. Customized according to customer’s product requirements to achieve a straight line of metal workpieces
2. Equipped with multidimensional ball screw table, imported servo control system contains a rotating table, you can weld cylindrical shape of objects and other types of objects, suitable for a wide range, high precision and speed.
3. Manual learning is designed for the laser welding machine.
4. Installation is easy and simple, using a selfmade cooling system, without any external water cooling towers.
5. Current waveforms can be arbitrary adjusted, applicable to a variety of materials and alloys
6. High efficiency, good effect, easy and simple to apply to a variety of materials.
Characteristics
Universal Laser Welding Machine Suitable for welding of thin plates within 1mm; 3D workbench and the master unit are integrated; can weld space curve and welds of high variable, applied in medical, electronics, battery, instrument, etc
Suitable materials and application
Suitable for welding of the kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode (triode), aluminium alloy, laptop shell, mobile phone battery, door handle, mould, electric apparatus fittings, filter, nozzle, stainless steel products, golf head, zinc alloy artworks
Weld point, straight line, circle, square or any plane graphs were drawn by AUTOCAD; weld vertical track.
Our Services
1.24-hour full after-sales service.
2. All finished machines we delivered is 100% strictly tested by our QC department and engineering department.
3.OEM Service Customized and OEM orders are welcome due to our abundant experiences. All the OEM services are free.

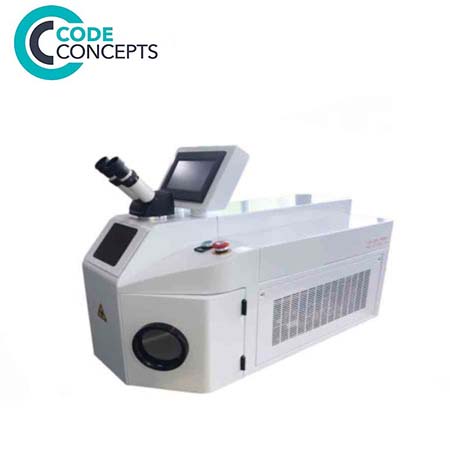

Jewelry Laser Welding Machine
Product Description
Model No.
XT-W100
XT-W150
XT-W200
Rated Power
100W
150W
200W
Single-pulse energy
40J
60J
80J
Power Supply
220V±10%,50Hz/60HZ
Laser Source
ND:YAG
Laser Wavelength
1064nm
Pulse Width
0.1-10ms
Pulse Frequency
≤50Hz
Beam Diameter
0.1-3.0mm
Welding wire diameter
0.1-0.4mm
0.1-0.5mm
0.1-0.6mm
Observing System
microscope
Chamber Illumination
LED lamps
Parameters Memorization
10 groups
Protection Alert
Yes
Language Display
English
Shield Gas Supply
One line quick connection(argon)
Cooling System
Water chiller
Welding Chamber Dimensions
300mm*450mm*150mm (L*W*H)
Machine Dimensions
920mm*560mm*1220mm (L*W*H)
Running Environment
Tem 5°C-30°C, Hum 5%-75%
Net Weight
150kg(welder) +75kg(chiller)
Advantages
1.Fully enclosed protective cover, Guaranteeing the separation of operator and machine, Dustproof Environmental
2.Exchangeable working table、10s for one-time table exchanging、effective saving of artificial feeding time
3.High thickness metal frame working bed, processed by hot quenching, more stable working bed structure
Characteristics
1.Stability and reliability of light path system and control system.
2. Imported original fiber lasers, high and stable function, lifespan is over 100000 hours.
3. Higher cutting quality and efficiency, cutting speed are up to 80m/min with the appearance and beautiful cutting edge.
4.German high-performance reducer, gear and rack; Japanese guide and all screw.
Our Services
1.24-hour full after-sales service.
2. All finished machines we delivered is 100% strictly tested by our QC department and engineering department.
3.OEM Service Customized and OEM orders are welcome due to our abundant experiences. All the OEM services are free.
