CO2 Laser Engraving and Cutting Machine
Standard CO2 Laser Engraving And Cutting Machine
Big Size Co2 Laser Engraving And Cutting Machine
Double Doors CO2 Laser Engraving And Cutting Machine
Standard CO2 Laser Engraving And Cutting Machine
Product Description
Machine Model
XTE-1610 /XTE-1390
Working size
1000mmL*1600mm、1300mmL*900mm
Laser tube power
60w/80/100W/150W
Cooling mode
Water cooling and protection system
Laser type
Co2 laser tube
MAX engraving speed
0-70000mm/min
Cutting speed
0-40000mm/min
Max moving Speed
30000mm/min
Resetting positioning
<0.01mm
Min forming character
1x 1mm
Operating temperature
0 – 45°C
Operating humidity
5-95℃
Power supply
220V±10% 50HZ or 110V±10% 60HZ
Picture Formats Supported
PLT/DXF/BMP/AI (Direct output)
JPG,GIF,PGN,TIF(Conversion output)
Software supported
Direct output software: CorelDraw, AutoCAD, LASERCUT
Design software: PhotoShop, ArtCut, Adobe Reader
Driving system
Stepper motor
Control system
Advanced DSP controlling system
Data transfer interface
USB flash disk / directly from computer
Operation
Windows 2000/vista/XP/07
software
Lasercut5.3
Laser output control
1-100% software setting
Highest scanning engraving
2500DPI
Accessories parts
1.laser tube,lens and mirror
2.water pump,air pump,exhaust fan
3.DSP control system,lasercut5.3 software,English manual,tool box,CD etc
Optional parts
1.Work table: Motorized up and down table/Honeycomb table/blade table
2.Rotary attachment with roller
3.Rotary attachment with clip
4.Red dot pointer
Spare parts(Recommended)
Extra 1 lens and 3mirrors
Extra Laser tube
Package
Plywood box
Advantages
1.High stability laser tube, high-quality lens and mirror, long life-span.
2. Automatic up&down table design satisfies the customers need of engraving thick materials.
3. Adopt advanced Ruida control system and easy to operate, international standard laser power supply, USB interface output can support off-line working.
4.Strong software function, compatible with Coreldraw, Autocad and so on.
5. Autofocus system, water pump, air pump and rotary attachment are optional.
Cutting Ability
CO2 Laser Engraving Cutting Machine is widely used in the mould industry, advertising, decoration, arts and crafts, electronic appliances, etc. And It is widely used for engraving & cutting on wood, acrylic, PVC plastic, plexiglass, architectural models, rubber plates, bamboo products and so on.
Our Services
1.24-hour full after-sales service.
2. All finished machines we delivered is 100% strictly tested by our QC department and engineering department.
3.OEM Service Customized and OEM orders are welcome due to our abundant experiences. All the OEM services are free.

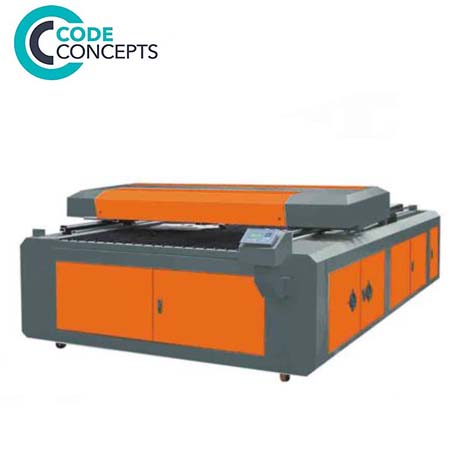

Big Size Co2 Laser Engraving And Cutting Machine
Product Description
Type
XTE-6090D
XTE-1290D
XTE-1490D
XTE-1325D
Engraving Area
600x900mm
1200x900mm
1400x900mm
1300*2500mm
Laser Power
60W/80W/100W/150W/180W
Laser Type
CO2 sealed laser tube, water-cooled, 10.6um
Engraving speed
0-70000mm/min
Cutting speed
0-4000mm/min
Communication interface
USB
Resetting positioning accuracy
≤0.01mm
Cutting depth
Acryl 0-25mm(other depths depend on materials)
Minimum Shaping Character
English1×1mm
Laser output control
1-100% software setting
Smallest Character Engraving
English 1.0mm*1.0mm
Locating Precision
≤±0.01mm
Highest Scanning precision
2500DPI
Operating temperature
0 – 45°C
Power supply
220V±10% 50HZ or 110V±10% 60HZ
Gross power
1200W
Software supported
ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported
PLT、DXF、BMP、JPG、GIF、PGN、TIF
Water Cooling: (Yes / No)
Yes
Laser Tube (life hours)
1500-2000hours
Assistant Equipment
Water pump
Exhaust Fan
Air pump
Optional parts
1.Worktable:Blade table/honeycomb table/motorized up and down table
2.Rotary attachment with roller
3.Rotary attachment with clip
4.Red dot pointer
5.Water chiller
6.Extra laser tube
Spare parts(Recommended)
Extra 1 lens and 3mirrors
Extra Laser tube
Package
Plywood box
Advantages
1. Customized according to customer’s product requirements to achieve a straight line of metal workpieces
2. Equipped with multidimensional ball screw table, imported servo control system contains a rotating table, you can weld cylindrical shape of objects and other types of objects, suitable for a wide range, high precision and speed.
3. Manual learning is designed for the laser welding machine.
4. Installation is easy and simple, using a selfmade cooling system, without any external water cooling towers.
5. Current waveforms can be arbitrary adjusted, applicable to a variety of materials and alloys
6. High efficiency, good effect, easy and simple to apply to a variety of materials.
Characteristics
Universal Laser Welding Machine Suitable for welding of thin plates within 1mm; 3D workbench and the master unit are integrated; can weld space curve and welds of high variable, applied in medical, electronics, battery, instrument, etc
Suitable materials and application
Suitable for welding of the kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode (triode), aluminium alloy, laptop shell, mobile phone battery, door handle, mould, electric apparatus fittings, filter, nozzle, stainless steel products, golf head, zinc alloy artworks
Weld point, straight line, circle, square or any plane graphs were drawn by AUTOCAD; weld vertical track.
Our Services
1.24-hour full after-sales service.
2. All finished machines we delivered is 100% strictly tested by our QC department and engineering department.
3.OEM Service Customized and OEM orders are welcome due to our abundant experiences. All the OEM services are free.

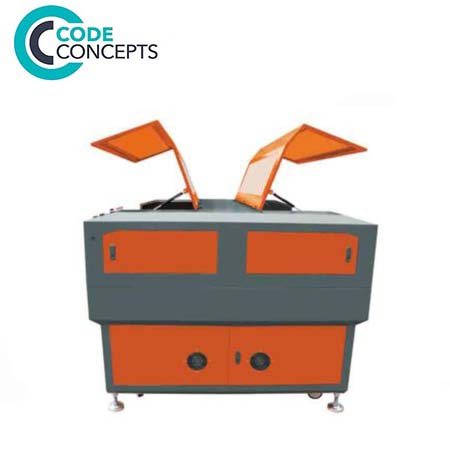

Double Doors CO2 Laser Engraving And Cutting Machine
Product Description
Machine Model
XTE-6040/XTE-9060/ XTE–1290/ XTE-1490/XTE-1610
Working size
600mmL*400mmW/900mmL*600mmW/1200mmL*900mmW / 1400mmL*900mmW /1600mmL*1000mmW
Laser tube power
60W/i80W/100W/150W/180W
Cooling mode
Water cooling and protection system
Laser type
Co2 laser tube
MAX engraving speed
0-70000mm/min
Cutting speed
0-40000mm/min
Max moving Speed
30000mm/min
Resetting positioning
<0.01mm
Min forming character
1x 1mm
Operating temperature
0 – 45°C
Operating humidity
5-95℃
Power supply
220V±10% 50HZ or 110V±10% 60HZ
Picture Formats Supported
PLT/DXF/BMP/AI (Direct output)
JPG,GIF,PGN,TIF(Conversion output)
Software supported
Direct output software: CorelDraw, AutoCAD, LASERCUT
Design software: PhotoShop, ArtCut, Adobe Reader
Driving system
stepper motor
Control system
Advanced DSP controlling system
Data transfer interface
USB flash disk / directly from computer
Operation
Windows 2000/vista/XP/07
software
Lasercut5.3
Laser output control
1-100% software setting
Highest scanning engraving
2500DPI
Control system
DSP offline control system
Accessories parts
1.laser tube,lens and mirror
2.water pump,air pump,exhaust fan
3.DSP control system,lasercut5.3 software,English manual,tool box,CD etc
Optional parts
1.Honeycomb table/blade table/Motorized up and down table
2.Rotary attachment with roller
3.Rotary attachment with clip
4.Red dot pointer
5.Auto focus
Spare parts(Recommended)
Extra 1 lens and 3mirrors
Extra Laser tube
Package
Plywood Box
Advantages
1.Fully enclosed protective cover, Guaranteeing the separation of operator and machine, Dustproof Environmental
2.Exchangeable working table、10s for one-time table exchanging、effective saving of artificial feeding time
3.High thickness metal frame working bed, processed by hot quenching, more stable working bed structure
Characteristics
1.Stability and reliability of light path system and control system.
2. Imported original fiber lasers, high and stable function, lifespan is over 100000 hours.
3. Higher cutting quality and efficiency, cutting speed are up to 80m/min with the appearance and beautiful cutting edge.
4.German high-performance reducer, gear and rack; Japanese guide and all screw.
Our Services
1.24-hour full after-sales service.
2. All finished machines we delivered is 100% strictly tested by our QC department and engineering department.
3.OEM Service Customized and OEM orders are welcome due to our abundant experiences. All the OEM services are free.
